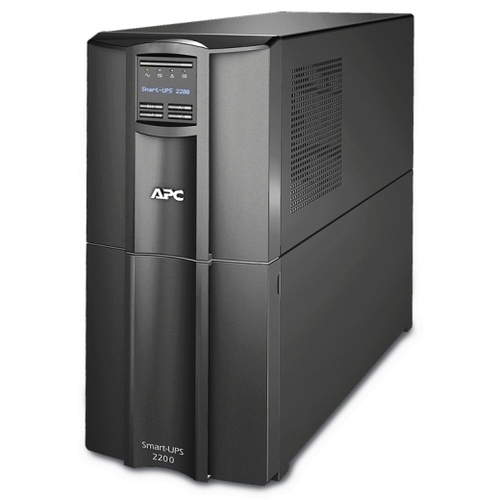

אל פסק APC Smart-UPS 2200VA LCD 230V

אזל זמנית

אל פסק APC Smart-UPS 2200VA LCD 230V בתצורת TOWER, אידיאלי עבור שרתים, נקודות מכירה, נתבים ועוד, קיבולת חשמל: 2200 VA תפוקת חשמל: 1980 W זמן גיבוי: 5-12 דקות, כולל צג דיגיטלי, 3 שנים אחריות (שנתיים על סוללות)

SMT2200I
אחריות: 3 שנים אחריות (שנתיים על סוללות) באתר הלקוח
זמן אספקה: 4 ימי עסקים , קיימת אפשרות לאיסוף עצמי
למה לקוחות קונים אצלנו:
  • זמן אספקה: עד 4 ימי עסקים
  • אחריות: 3 שנים אחריות (שנתיים על סוללות) באתר הלקוח
  • אפשרות לעד 36 תשלומים (ועד 4 תשלומים ללא ריבית)
  • משלוח עם שליח עד לבית הלקוח, קניה מאובטחת ושירות לקוחות מעולה
3 שנים אחריות (שנתיים על סוללות) באתר הלקוח חודשי אחריות
משלוח חינם משלוח חינם
קניה בטוחה
שאל אותנו על מוצר זה

מידע נוסף

SMT2200I Features

Key Features

Output power capacity

1.98kWatts / 2.2kVA

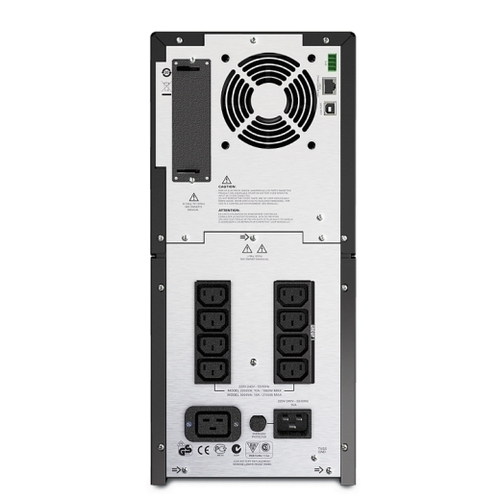

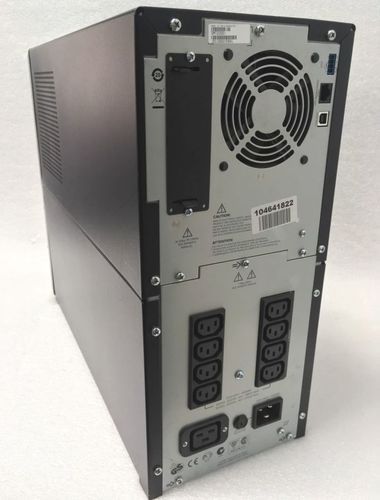

Output Connections

(1) IEC 320 C19 (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
Nominal Output Voltage

230V
Nominal Input Voltage

230V
Input Connections

IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
APC Smart-UPS 2200VA LCD 230V
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: CD with software, Documentation CD, Smart UPS signalling RS-232 cable, USB cable

Cold-start capable

Provides temporary battery power when the utility power is out.

Energy meter

Provides actual kilowatt hours of usage for energy conscious users.

Green mode

Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

High online efficiency

Reduces utility costs, generates less heat.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Predictive replace battery date

Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Sequenced network shutdown and reboot

Customize network shutdown and reboot sequence of connected servers and UPSs.

Single switched outlet group

Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

SmartSlot

Customize UPS capabilities with management cards.

StruxureWare Data Center Expert compatible

Enables centralized management via StruxureWare Data Center Expert.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits

Manageability

USB connectivity

Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification

Warns when a battery is not available to provide backup power.
LED status indicators

Quickly understand unit and power status with visual indicators.
Serial connectivity

Provides management of the UPS via a serial port.
Network manageable

Provides remote power management of the UPS over the network.
Audible alarms

Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

Marketing Features

Avoids costly power problems by keeping your IT equipment and data safe and available

Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems
Peace of mind that comes with full equipment compatibility and reliability of a leader

Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Smarter productivity  with ability to tailor to your specific application needs

Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.
Save time with easy and convenient remote accessibility

Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.
Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management

Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

Availability

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Disconnected battery notification

Warns when a battery is not available to provide backup power.
Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Adaptability

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Safety

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Serviceability

User-replaceable batteries

Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Resettable circuit breakers

Enables a quick recovery from overload events.
Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.

Product Distribution

United Arab Emirates, Netherlands Antilles, Angola, Argentina, Burkina Faso, Bahrain, Burundi, Benin, Bolivia, Botswana, The Democratic Republic Of Congo, Central African Republic, Congo, Côte d’Ivoire, Chile, Cameroon, Djibouti, Algeria, Egypt, Western Sahara, Eritrea, Spain, Ethiopia, Gabon, Georgia, Ghana, Gibraltar, Gambia, Guinea, Equatorial Guinea, Iran, Jordan, Kenya, Kuwait, Lebanon, Liberia, Lesotho, Morocco, Madagascar, Mali, Myanmar, Mauritania, Mauritius, Malawi, Mozambique, Namibia, Niger, Nigeria, Nepal, Oman, Peru, Pakistan, Paraguay, Qatar, Reunion, Russia, Rwanda, Saudi Arabia, Sudan, Sierra Leone, Senegal, Somalia, Suriname, Chad, Togo, Tunisia, Turkey, Tanzania, Uganda, Uruguay, XF, Yemen, Mayotte, South Africa, Zambia, Zimbabwe

Technical Specifications

Print Technical Specification


Download

Output

Max Configurable Power (Watts)

1.98kWatts / 2.2kVA
Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion

Less than 5% at full load
Output Frequency (sync to mains)

47 – 53 Hz for 50 Hz nominal, 57 – 63 Hz for 60 Hz nominal
Topology

Line Interactive
Waveform type

Sine wave
Transfer Time

6ms typical : 10ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations

160 – 286V
Input voltage adjustable range for mains operation

151 – 302V
Number of Power Cords

1
Other Input Voltages

220, 240

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time

3hour(s)
Replacement Battery

RBC55
Expected Battery Life (years)

3 – 5
RBC Quantity

1
Battery Volt-Amp-Hour Capacity

783
Runtime

View Runtime Graph
View Runtime Chart
Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

SmartSlot
Control panel

Multi-function LCD status and control console
Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO)

Yes
Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

365Joules
Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

435MM, 43.5CM
Maximum Width

197MM, 19.7CM
Maximum Depth

544MM, 54.4CM
Net Weight

48.8KG
Shipping weight

61.9KG
Shipping Height

699MM, 69.9CM
Shipping Width

381MM, 38.1CM
Shipping Depth

762MM, 76.2CM
Color

Black
Units per Pallet

9.0

Environmental

Operating Temperature

0 – 40 °C
Operating Relative Humidity

0 – 95 %
Operating Elevation

0-3000meters
Storage Temperature

-15 – 45 °C
Storage Relative Humidity

0 – 95 %
Storage Elevation

0-15000meters
Audible noise at 1 meter from surface of unit

45.0dBA
Online thermal dissipation

275.0BTU/hr
Protection Class

IP 20

Conformance

Approvals

CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Standard warranty

3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available

Sustainable Offer Status

RoHS

Compliant
REACH

REACH: Contains SVHCs
PEP

Available in Documentation tab
EOLI

Available in Documentation tab
