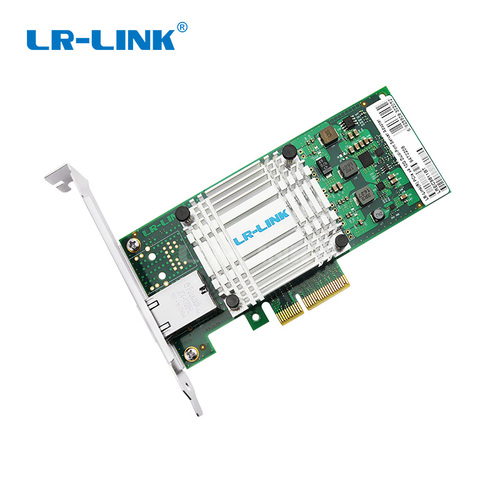

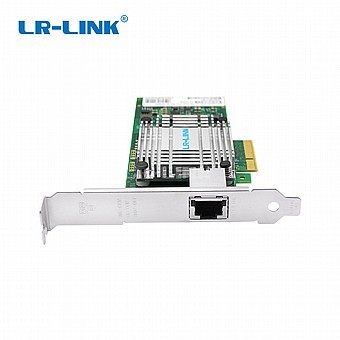

LR-LINK LREC9811BT – PCIe v3.0 x4 10 Gigabit Dual Copper Port Ethernet Server Adapter – based on Intel X550-T1
LREC9811BT a PCIe x4 3.0 10Gbps Single Port Ethernet Server Adapter
Based on Intel X550 chipset, independently developed by Shenzhen Lianrui Electronics
CO., ltd, and is compatible with PCIe x8,x16 slot. This adapter card optimizes its
performance, making the system I/O no longer be the bottleneck of the network
application
The Server Adapter LREC9811BT Simplifies Migration to 10 Gigabit Ethernet (GbE),
Provides iSCSI FCoE Virtualization and Flexible Port Partitioning (FPP)
| Specifications |
|
Controller
|
Intel Ethernet Controller X550AT
|
|
Baffle Height
|
Full height and half height
|
|
Power Consumption
|
Typical Power11.2W; Maximum Power13.0W
|
|
System Support
|
Windows Server* 2012 R2;
Windows Server 2012 R2 Core;
Windows Server 2012;
Windows Server 2012 Core;
Windows Server 2008 R2;
Windows Server 2008 R2 Core;
Linux* Stable Kernel version 2.6.32/3x;
Linux* RHEL 6.5 and RHEL 7.0;
Linux* SLES 11 SP3 and SLES 12;
FreeBSD* 9 and FreeBSD* 10;
UEFI* 2.1; UEFI* 2.3;
VMware ESXi 5.1(Limited Functionality);
VMware ESXi 5.5
|
|
Ports
|
Single 10GBASE-T RJ45 Port
|
|
Bus type
|
PCIe v3.0 (8.0GT/s) (2.0 and 1.1 compatible)
|
|
Bus Width
|
x4 lane PCle operable in x8 and x16 slots
|
|
Data rate supported per port
|
10 GbE/1 GbE/100MbE
|
|
LED Indicators
|
Link（green/orange bright）and ACTIVITY
Link Rate(green=10Gbps；orange=1Gbps/100Mbps)
|
|
Virtual Machine Device Queues (VMDq)
|
Offloads data sorting from the hypervisor to silicon, improving data throughput and CPU usage
QoS feature for Tx data by providing round-robin servicing and preventing head-of- line blocking
Sorting based on MAC addresses and VLAN tags
|
|
Support for PCI-SIG SR-IOV
|
Up to 64 VFs per port
|
|
IEEE 802.1Q VLAN Support with VLAN Tag
|
Ability to create multiple VLAN segments
|
|
VXLAN Stateless Offloads
|
A framework for overlaying virtualized layer 2 networks over layer 3 networks. VXLAN enables users to create a logical network for VMs across different networks
|
|
NVGRE Stateless Offloads
|
Network Virtualization using Generic Routing Encapsulation. The encapsulation of an Ethernet Layer 2 Frame in IP that enables the creation of virtualized Layer 2 subnets that can span physical Layer 3 IP networks
|
|
Intel® Flow Director
|
Yes
|
|
MSI-X
|
Yes
|
|
FPP – 64 VFs Per Port
|
Yes
|
|
Tx/Rx IP SCTP TCP and UDP Checksum Offloading (lPv4IPv6) Capabilities
|
Yes
|
|
Tx TCP Segmentation Offload
|
Yes
|
|
SNMP and RMON
|
Yes
|
|
Protocol Support
|
IEEE 802.1Q* VLANs
IEEE 802.3 2005* flow control support
compatible 10 GbE and 1 GbE Ethernet/ 802.3ap (KX/KX4) Specification
compatible the 10 GbE 802.3ap (KR) Specification
compatible 1000BASE-BX Specification
|
|
PXE
|
Yes
|
|
WoL
|
No
|
|
Jumbo frames
|
15.5 KB
|
|
Ethernet power management
|
Yes
|
|
Storage
|
iSCSI, NFS,FCoE,SMB
|
|
Operating temperature
|
0 °C to 55 °C (32 °F to 131 °F)
|
|
Storage temperature
|
-40 °C to 70 °C (-40 °F to 158 °F)
|
|
Storage humidity
|
Maximum: 90% non-condensing relative humidity at 35 °C
|
|
Air Flow
|
Minimum of 1 50 LFM required
|
|
Certifications
|
FCC CE RoHS
|
|
Size（LxWxH）mm
|
137X69X1.6 mm
|
|
