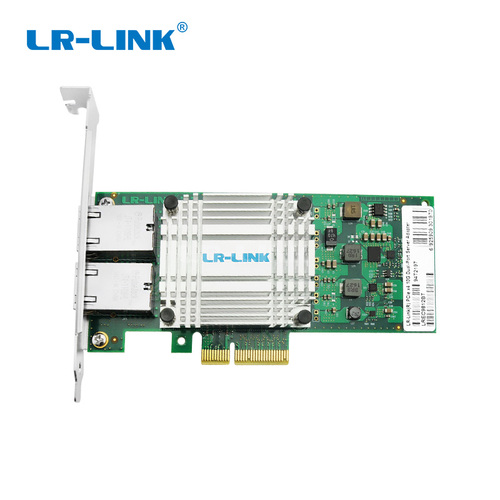

כרטיס רשת פנימי LR-LINK LREC9812BT Intel x550 T2

כרטיס רשת פנימי LR-LINK LREC9812BT Intel x550 T2 כולל שתי יצואת רשת 10GbE RJ45, ממשק: PCI Express (PCIe) v3.0, 8.0 GT/s, x4 lanes, סוג : Low profile and full-height bracket, מבוסס שבב: Intel x550-T2
LREC9812BT
זמן אספקה: 4 ימי עסקים , קיימת אפשרות לאיסוף עצמי
למה לקוחות קונים אצלנו:
  • זמן אספקה: עד 4 ימי עסקים
  • אפשרות לעד 36 תשלומים (ועד 4 תשלומים ללא ריבית)
  • משלוח עם שליח עד לבית הלקוח, קניה מאובטחת ושירות לקוחות מעולה
משלוח חינם משלוח חינם
קניה בטוחה
שאל אותנו על מוצר זה

מידע נוסף

כרטיס רשת פנימי LR-LINK LREC9812BT Intel x550 T2

PCIe v3.0 x4 10 Gigabit Dual Copper Port Ethernet Server Adapter – based on Intel x550 T2

:Key Features
Dual-port 10GbE adapters
PCI Express (PCIe) v3.0, 8.0 GT/s, x4 lanes
Low cost, low power,10 GbE performance for the entire data center.
Standard CAT 6a cabling with RJ45 connectors.
New generation single and dual port 1OGBASE-T controller with integrated MAC and PHY
Unified networking delivering LAN iSCSI and FCoE in one low-cost CNA
Unified networking delivering LAN iSCSI and FCoE in one low-cost CNA.
Network Virtualization, low latency



LREC9812BTis a PCIe x4 3.0 10Gbps Dual Port Ethernet Server Adapter based on Intel X550 chipset, independently developed by Shenzhen Lianrui Electronics CO., ltd,and is compatible with PCIe x8,x16 slot.This adapter card optimizes its performance, making the system I/O no longer be the bottleneck of the network application.

The Server Adapter LREC9812BT Simplifies Migration to 10 Gigabit Ethernet (GbE), Provides iSCSI FCoE Virtualization and Flexible Port Partitioning (FPP).





Specifications

Controller

Intel Ethernet Controller X550AT2

Baffle Height

Full height and half height

Power Consumption

Typical  Power11.2W;  Maximum Power13.0W

System Support

Windows ServerX 2012 R2;

Windows Server 2012 R2 Core;

Windows Server 2012;

Windows Server 2012 Core;

Windows Server 2008 R2;

Windows Server 2008 R2 Core;

LinuxX Stable Kernel version 2.6.32/3x;

LinuxX RHEL 6.5 and RHEL 7.0;

LinuxX SLES 11 SP3 and SLES 12;

FreeBSDX 9 and FreeBSDX 10;

UEFIX 2.1; UEFIX 2.3;

VMware ESXi 5.1(Limited Functionality);

VMware ESXi 5.5

Ports

Dual 10GBASE-T RJ45 Port

Bus type

PCIe v3.0 (8.0GT/s) (2.0 and 1.1 compatible)

Bus Width

x4 lane PCle operable in x8 and x16 slots

Data rate supported per port

10 GbE/1 GbE/100MbE

LED Indicators

Link（green/orange bright）and ACTIVITY

Link Rate(green=10Gbps；orange=1Gbps/100Mbps)

Virtual Machine Device Queues (VMDq)

Offloads data sorting from the hypervisor to silicon, improving data throughput and CPU usage

QoS feature for Tx data by providing round-robin servicing and preventing head-of- line blocking

Sorting based on MAC addresses and VLAN tags

Support for PCI-SIG SR-IOV

Up to 64 VFs per port

IEEE 802.1Q VLAN Support with VLAN Tag

Ability to create multiple VLAN segments

VXLAN Stateless Offloads

A framework for overlaying virtualized layer 2 networks over layer 3 networks. VXLAN enables users to create a logical network for VMs across different networks

NVGRE Stateless Offloads

Network Virtualization using Generic Routing Encapsulation. The encapsulation of an Ethernet Layer 2 Frame in IP that enables the creation of virtualized Layer 2 subnets that can span physical Layer 3 IP networks

Intel® Flow Director

Yes

MSI-X

Yes

FPP – 64 VFs Per Port

Yes

Tx/Rx IP SCTP TCP and UDP Checksum Offloading (lPv4IPv6) Capabilities

Yes

Tx TCP Segmentation Offload

Yes

SNMP and RMON

Yes

Protocol Support

IEEE 802.1QX VLANs

IEEE 802.3 2005X flow control support

compatible 10 GbE and 1 GbE Ethernet/ 802.3ap (KX/KX4) Specification

compatible the 10 GbE 802.3ap (KR) Specification

compatible 1000BASE-BX Specification

PXE

Yes

WoL

No

Jumbo frames

15.5 KB

Ethernet power management

Yes

Storage

iSCSI, NFS,FCoE,SMB

Operating temperature

0 °C to 55 °C (32 °F to 131 °F)

Storage temperature

-40 °C to 70 °C (-40 °F to 158 °F)

Storage humidity

Maximum: 90% non-condensing relative humidity at 35 °C

Air Flow

Minimum of 1 50 LFM required

Certifications

FCC CE RoHS

Size（LxWxH）mm

137X69X1.6 mm
