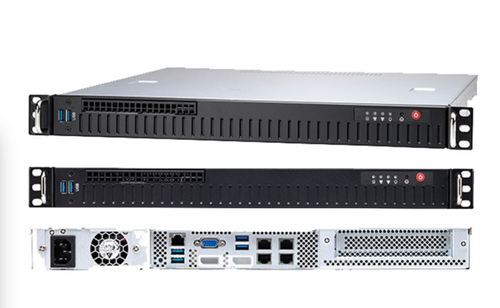

| System |
Form Factor |
1U Rackmount |
| Chassis Model |
GX38 |
| Dimension (D x W x H) |
15″ × 16.9″ × 1.75″ (381 × 428 × 44.4mm) |
| Motherboard Name |
S5550GM2NR |
| Gross Weight |
9.1 kg (20 lbs) |
| Net weight |
5.3 kg (11.6 lbs) |
| Front Panel |
Buttons |
(1) PWR |
| LEDs |
(1) PWR / (2) LAN / (1) BMC event |
| I/O Ports |
(2) USB 3.1 Gen.1 ports |
| Internal Drive Bay |
Type / Q’ty |
(2) 3.5" Fixed HDDs |
| Supported HDD Interface |
(2) SATA 6Gb/s |
| System Cooling Configuration |
FAN |
(3) 4028 fans |
| Power Supply |
Type |
FlexATX |
| Input Range |
AC 100-240V/3.5A |
| Frequency |
47-63 Hz |
| Output Watts |
250 Watts |
| Efficiency |
PFC / 80 plus Platinum |
| Processor |
Q’ty / Socket Type |
(1) LGA1151 |
| Supported CPU Series |
Intel Celeron G4900 Series Processors and Intel Pentium Processor G5000 Series / Intel Xeon E-2200/2100 series processors / 9th/8th Gen. Intel Core i3 processors |
| Thermal Design Power Wattage |
Max up to 95W (TDP) |
| Chipset |
PCH |
Intel C242 |
| Memory |
Supported DIMM Qty |
(4) DIMM slots |
| DIMM Type / Speed |
DDR4 ECC UDIMM 2666/2400 |
| Capacity |
Up to 128GB / *Follow latest Intel DDR4 Memory POR |
| Memory channel |
2 Channels per CPU |
| Memory voltage |
1.2V |
| Expansion Slots |
PCIe |
(1) PCIe Gen.3 x16 slot (w/ x16 or x8 link in FH/HL) |
| Pre-installed TYAN Riser Card (PCIe Gen.3) |
(1) M2091 riser card for (1) PCIe Gen.3 x16 slot (left) |
| Physical Dimension Abbreviation |
FH/FL (Full-height / Full-length): 4.4″ × 12.3″ (111.2 × 312mm) |
| LAN |
Q’ty / Port |
(2) GbE ports + (1) GbE dedicated for IPMI |
| Controller |
Intel I210-AT |
| PHY |
Realtek RTL8211E |
| Storage SATA |
Connector |
(2) SATA-DOM |
| Controller |
Intel C242 |
| Speed |
6Gb/s |
| RAID |
RAID 0/1 (Intel RSTe) |
| Graphic |
Connector type |
D-Sub 15-pin |
| Resolution |
Up to 1920×1200 |
| Chipset |
Aspeed AST2500 |
| I/O Ports |
USB |
(2) USB3.1 Gen.1 ports (@ rear) / (2) USB3.1 Gen.1 ports (@ front) / (2) USB3.1 Gen.2 ports (@ rear) |
| VGA |
(1) D-Sub 15-pin port |
| RJ-45 |
(2) GbE ports + (1) dedicated GbE for IPMI |
| SATA |
(2) SATA-DOM connectors |
| TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
| System Monitoring |
Chipset |
Aspeed AST2500 |
| Temperature |
Monitors temperature for CPU & system environment |
| Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
| LED |
Over temperature warning indicator / Fan & PSU fail LED indicator |
| Others |
Watchdog timer support |
| Server Management |
Onboard Chipset |
Onboard Aspeed AST2500 |
| AST2500 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| AST2500 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS |
Brand / ROM size |
AMI / 32MB |
| Feature |
Hardware Monitor / PXE boot support / iSCSI support / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.1/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S5 |
| Operating System |
OS supported list |
Please refer to our AVL support lists. |
| Regulation |
FCC (SDoC) |
Class A |
| CE (DoC) |
Class A |
| CB/LVD |
Yes |
| RCM |
Class A |
| VCCI |
Class A |
| Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity 90 |
90%, non-condensing at 35° C |
| Package Contains |
Barebone |
(1) GX38-B5550 Barebone |
| Manual |
(1) Quick Installation Guide |
| RoHS |
RoHS 6/6 Compliant |
Yes |
