| System |
Form Factor |
1U Rackmount |
| Chassis Model |
GA88 |
| Dimension (D x W x H) |
34.84″ × 17.24″ × 1.71″ (885 × 438 × 43.5mm) |
| Motherboard Name |
S5631GM2NR-2T # |
| Motherboard Notification |
# The motherboard not sold separately |
| Gross Weight |
26.5 kg (58.5 lbs) |
| Net weight |
13.5 kg (30 lbs) |
| Front Panel |
Buttons |
(1) UID / (1) PWR / (1) RST |
| LEDs |
(1) HDD / (1) PWR / (2) LAN / (1) Warning |
| I/O Ports |
(2) USB 3.0 ports |
| External Drive Bay |
Q’ty / Type |
(2) 2.5" Hot-Swap HDD/SSDs |
| Front Drive Bay Interface |
(2) SATA 6Gb/s |
| Front HDD Backplane Support |
SAS 12Gb/s /SATA 6Gb/s |
| System Cooling Configuration |
Redundancy |
Yes |
| FAN |
(10) 4cm fans |
| Power Supply |
Type |
CRPS |
| Input Range |
AC 100-127V/12A / AC 200-240V/9.48A |
| Frequency |
47-63 Hz |
| Output Watts |
Delta 1,600 Watts# |
| Efficiency |
80 plus Platinum |
| Redundancy |
1+1 |
| Notification |
# Delta and Chicony are not interchangeable parts. Please use the required power supply module as indicated in the user’s manual. |
| Processor |
Q’ty / Socket Type |
(1) LGA3647 |
| Supported CPU Series |
Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor |
| Thermal Design Power Wattage |
Max up to 165W (TDP) |
| System Bus |
1066/ 800/ 533 MHz |
| Chipset |
PCH |
Intel C621 |
| Switch IC |
(2) PLX PEX8747 |
| Memory |
Supported DIMM Qty |
(12) DIMM slots |
| DIMM Type / Speed |
DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / DDR4 JEDEC NVDIMM 2666 / Intel Optane DC Persistent Memory Module (DCPMM) |
| Capacity |
Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR |
| Memory channel |
6 Channels per CPU |
| Memory voltage |
1.2V |
| Notification |
DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact Tyan Technical Support for more detail. |
| Expansion Slots |
PCIe |
(1) PCIe Gen.3 x16 slot (FH/HL) / (4) PCIe Gen.3 x16 slots (FH/ 10.5"L/DW) |
| Pre-installed TYAN Riser Card (PCIe Gen.3) |
(1) M2091-R riser card for (1) PCIe Gen.3 x16 slot (right) / (1) M5631-R16-2 # riser card for (1) PCIe Gen.3 x16 slot (right) / (3) M5631-R16-1 # riser card for (3) PCIe Gen.3 x16 slots (right) |
| Physical Dimension Abbreviation |
FH/HL (Full-height / Half-length): 4.4″ × 6.6″ (111.2 × 167.7mm) / FH/10.5”L (Full-height / 10.5” in length ): 4.4″ × 10.5″ (111.2 × 266.7mm) |
| Notification |
# The item not sold separately |
| LAN |
Q’ty / Port |
(2) 10GbE ports + (1) GbE dedicated for IPMI |
| Controller |
Intel X550-AT2 |
| PHY |
Realtek RTL8211E |
| Stotage sSATA |
Connector |
(2) SATA-DOM / (2) SATA-III |
| Controller |
Intel C621 |
| Speed |
6Gb/s |
| RAID |
RAID 0/1/10/5 (Intel RSTe) |
| Storage NVMe |
Connector (M.2) |
(2) 22110/2280 (by PCIe & SATA interface) |
| Graphic |
Connector type |
D-Sub 15-pin |
| Resolution |
Up to 1920×1200 |
| Chipset |
Aspeed AST2500 |
| I/O Ports |
USB |
(1) USB3.0 TYPE-A / (2) USB3.0 ports (@ front) / (2) USB3.0 ports (@ rear) |
| COM |
(1) 2×5 pin-header |
| VGA |
(1) D-Sub 15-pin port |
| RJ-45 |
(2) 10 GbE ports + (1) dedicated GbE for IPMI |
| TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
| System Monitoring |
Chipset |
Aspeed AST2500 |
| Temperature |
Monitors temperature for CPU & memory & system environment |
| Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
| LED |
Over temperature warning indicator / Fan & PSU fail LED indicator |
| Others |
Watchdog timer support |
| Server Management |
Onboard Chipset |
Onboard Aspeed AST2500 |
| AST2500 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
| AST2500 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
| BIOS |
Brand / ROM size |
AMI / 32MB |
| Feature |
Hardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / User Configurable FAN PWM Duty Cycle / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S4,S5 |
| Operating System |
OS supported list |
Please refer to our AVL support lists. |
| Regulation |
FCC (SDoC) |
Class A |
| CE (DoC) |
Class A |
| CB/LVD |
Yes |
| RCM |
Class A |
| VCCI |
Class A |
| Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
| Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
| In/Non-operating Humidity 90 |
90%, non-condensing at 35° C |
| Note |
Please refer to the TYAN NVIDIA Compatibility List for the operating temperature while GPGPU deployed |
| Package Contains |
Barebone |

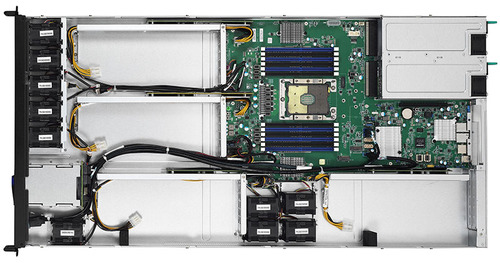

(1) GA88-B5631 w/NV Tesla-aware FW Barebone |
| Manual |
(1) Quick Installation Guide |
| Installation CD |
(1) TYAN Device Driver CD |
| RoHS |
RoHS 6/6 Compliant |
Yes |
