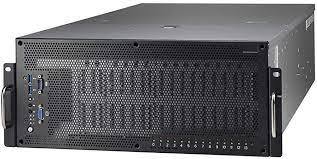

שרת Thunder HX FA77-B7119

שרת Tyan Thunder HX FA77B7119 (B7119F77V14HR-2T-N) מיועד ליישומים במחשוב בעל ביצועים גבוהים, בינה מלאכותית ולמידת מכונה. הוא תומך במעבדי Intel Xeon Scalable כפולים במארז 4U עם עד 24 חריצי DIMM, ועד 11 חריצי PCIe Gen 3.0 לתמיכה בעד 10 GPUs ברוחב כפול וכרטיס I/O בעל ביצועים גבוהים.מארז השרת: 4U Rackmount.
B7119F77V14HR-2T-N
אחריות: שלוש שנים
זמן אספקה: 4 ימי עסקים , קיימת אפשרות לאיסוף עצמי
למה לקוחות קונים אצלנו:
  • זמן אספקה: עד 4 ימי עסקים
  • אחריות: שלוש שנים
  • אפשרות לעד 36 תשלומים (ועד 4 תשלומים ללא ריבית)
  • משלוח עם שליח עד לבית הלקוח, קניה מאובטחת ושירות לקוחות מעולה
שלוש שנים חודשי אחריות
משלוח חינם משלוח חינם
קניה בטוחה
שאל אותנו על מוצר זה

מידע נוסף





Thunder HX

10GPU Server Platform for Machine Learning

Dual-Socket Intel 2nd Gen Xeon® Scalable Processors

Supports Single CPU Deployment with 10GPU

(24) DIMM slots supporting up to 3TB DDR4-2667

(14) Hot-Swap 2.5" SATA 6G drive bays

(10) Double-Width PCIex16 slots for GPUs

(1) PCIex16 slot for NIC up to 100Gb/s

AST2500 BMC with Redfish support





The Tyan Thunder HX FA77B7119 (B7119F77V14HR-2T-N) Server is designed for applications in high-performance computing, AI, and machine learning. It supports dual Intel Xeon Scalable processors in a 4U chassis with up to 24 DIMM slots, and up to 11 PCIe Gen 3.0 slots to support up to 10 double-wide GPUs and a high performance I/O card.

 Tyan’s Thunder HX FA77-B7119 B7119F77V14HR-2T-N server delivers up to 10 Nvidia GPUs in a 4U chassis for remote direct memory access (RDMA). In addition to the Scalable processors, and support for 24 DIMM slots with both processors installed, you can also load up to 14 × 2.5-inch hot-swap SAS 12Gb/s or SATA 6Gb/s storage devices. Up to 4 NVMe storage devices can also be installed with 10 SAS/SATA drives with the NVMe backplane.

Performance

Two intel Xeon Scalable processors with a Thermal Design Point (TDP) of up to 205W can be installed in the Tyan Thunder HX FA77B7119 B7119F77V14HR-2T-N server. A select group of CPUs from the Silver, Gold and Platinum categories offer core counts of 8, 10, 12, 16, and 28. Each processor supports 6 memory channels. Additional computation is provided by either 10 double-width GPUs or up to 20 single-width GPUs. Powering the system are 4 × 1600W PSUs with 3+1 redundancy and keeping it all cool is a bank of six large fans offering 5+1 redundancy.

Storage

You can install up to 14 × 2.5-inch hot swap SAS or SATA storage devices are installed vertically at the front of the Tyan FA77-B7119 B7119F77V14HR-2T-N server with the cover removed. Another configuration supports up to 10 x SAS or SATA 2.5-inch HDD or SSD drives with up to 4 x NVMe devices. The HDD backplane supports either SAS and SATA drives or one that supports SAS, SATA, and NVMe. The controller is integrated with the system board and supports SATA and eSATA. To implement 4 x NVMe storage devices requires two SFF-8612 OCuLink PCIe x8 cards with two ports each. There are thermal restrictions on how many GPUs/storage devices can be installed and depends on which supported GPUs you install.

Memory

Memory is impressive on this system with 24 DDR4 memory slots shared between two processors. Two memory modules are supported in each of the six memory channels administered by each CPU for a total of up to 12 memory modules per processor. Registered (RDIMM), Load Reduced (LRDIMM and 3DS LRDIMM modules running at speeds of up to 2666MHz are supported. Although, to reach those memory speeds depends on the processor, memory modules, and memory configuration, with the system defaulting to the slowest performer. Using registered (RDIMM) memory modules will support up to 768GB, with Load Reduced (LRDIMM)memory modules, double that value to 1.5TB, and lastly using either 3DS RDIMMS or LRDIMMs to support incredible performance at up to 3TB!

Expansion

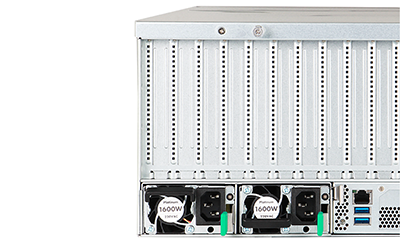

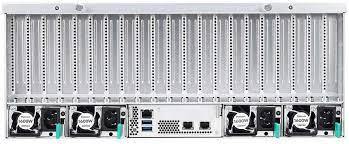

Tyan Thunder HX FA77B7119 B7119F77V14HR-2T-N server rear view

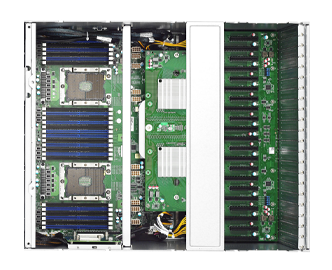

The PCIe slots are supported on a separate circuit board that plugs into the main motherboard with an I/O bridge bracket. In total, there are 11 full height PCIe Gen3 slots and one PCIe Gen3 x16 PCIe slot for the pre-installed Tyan Mezzanine card, the Tyan M2217-L16-IO. Another 10 PCIe Gen3 x8 slots, or mux’d slots (mulitplexed), are located between the x16 slots and share the PCIe lanes, so Tyan FA77B7119 B7119F77V14HR-2T-N server will also support up to 21 x8 PCIe slots which can be used to support up to 20 single-width Nvidia P4 GPUs. The 10 x16 PCIe slots are for loading up to 10 full height, double-width Nvidia Tesla GPUs like the V100 or P100. The Mezzanine card will support a single M2217-L16-IO OCP HD/RAID SAS Controller with two x4 mini-SAS connectors and up to 12Gb/s per port. Another single x16 PCIe Gen3 slot located right in the middle of the PCIe rows can support additional IO with the intel X540-AT2 LAN controller.


Management


The onboard Aspeed AST2500 chipset provides built-in system monitoring for the CPUs, memory, chipset, power supply, and LAN activity using the LEDs on the integrated control panel on the front of the system. A separate group of LEDs on the lower right of the front panel show storage device activity. An Aspeed AST2500 also provides server management with iKVM features through the IPMI 2.0 compliant base board management controller, or BMC. A dedicated ethernet port on the back of the Tyan FA77-B7119 B7119F77V14HR-2T-N server provides access to the system for out-of-band management via Microsoft Windows Emergency Management Services (EMS).


Summary


The Tyan Thunder HX FA77B7119 B7119F77V14HR-2T-N Server is an excellent choice for Remote Direct Memory Access (RDMA), Artificial intelligence (AI), and Deep Neural Network (DNN) workloads, which require significant computation of massive amounts of data. This GPU-enhanced server is an optimal fit for data center applications because it offers higher efficiency, performance, and occupies less space than relying on servers with one or two processors running general-purpose workloads.



Tyan Thunder HX FA77B7119 B7119F77V14HR-2T-N Server – Specifications



PROCESSOR – 2 SOCKET

Intel Xeon Scalable Processors gen1

Intel Xeon Scalable Processors gen2

OPERATING SYSTEM

Windows Server 2012 R2 Datacenter x64

Windows Server 2012 Enterprise R2 x64

Windows Server 2016

RHEL 6.9 x64

RHEL 7.3 x64

RHEL 7.4 x64

Ubuntu Server 16.04 x64

CHIPSET

Intel 621

MEMORY

Supported DIMM Quantity



12 per processor



RDIMM:



Up to 786GB



LRDIMM:



Up to 1536GB



RDIMM 3DS / LRDIMM 3DS



Up to 3072GB

MEMORY SPEED

Intel Xeon Scalable Processors Gen1: 2666MHz

Intel Xeon Scalable Processors Gen2: 2933MHz



Memory speed is dependent on both CPU memory speed, memory module memory speed, and in some cases memory configuration, defaulting to the slowest performer.

STORAGE TYPE

2.5-Inch HDD and SSd

SAS

SATA

STORAGE DRIVE BAYS

14 × 2.5″ Hot-Swap SSD/HDD

I/O PORTS & EXPANSION SLOTS

I/O Ports:



2 x USB 3.0 ports

1 x DB-9 COM port

1 x D-Sub 15-pin

2 × 10GbE ports

1 x dedicate GbE port for IPMI



Expansion Slots



11 x PCIe Gen3 x16 slots

1 x PCIe Gen3 x16 TYAN mezzanine slot

LAN

3 LAN ports

RAID CONTROLLER

RAID 0/1/10/5 (Intel RSTe)

POWER (3 + 1 REDUNDANCY)

80-PLUS Platinum 3000 Watt / 4800 Watts outputs



GRAPHICS CARD

Connector Type



D-Sub 15 pin



Resolution



Up to 1920 × 1200



Chipset



Aspeed AST2500

CHASSIS

4U Rack



Dimensions (D x W x H)



30.31″ × 17.24″ × 6.93″ (770 × 438 × 176mm)

MANAGEMENT

AST2500 iKVM Feature



IPMI 2.0 compliant baseboard management controller (BMC), Supports storage over IP and remote platform-flash, USB 2.0 virtual hub



AST2500 IPMI Feature



24-bit high quality video compression, 10/100/1000 Mb/s MAC interface
