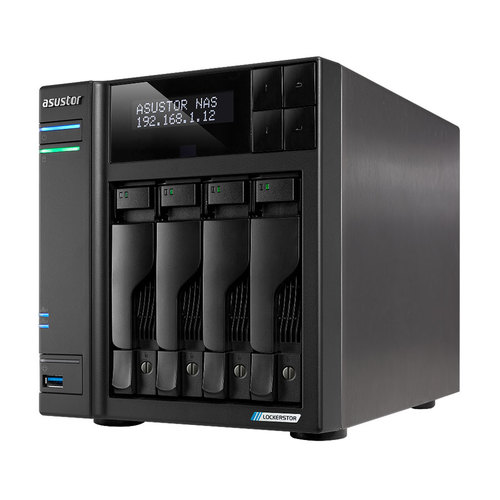

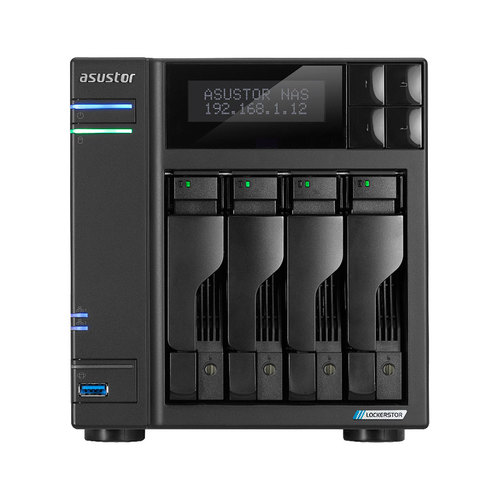

Asustor AS6704T 4-Bay NAS
The No-Compromises 2.5GbE NAS
Enthusiast-grade NAS with two, four or six bays
Quad-Core 10 nm Intel Celeron N5105 CPU – 31% more performance over Gemini Lake
Superfast 2.5-Gigabit Ethernet ports
Flexible PCIe slot for 10GbE NICs or M.2 SSDs
Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0.
Uses DDR4-2933 with 40% more performance
USB 3.2 Gen2 ports – 10Gbps speed
Enjoy, download, upload and stream content with 4K transcoding
Increased ventilation for SSDs
Supports Wake on LAN and Wake on WAN
ASUSTOR Storage with Adobe Creative Cloud
Powered by the Latest 10 nm Intel Jasper Lake Celeron Quad-Core Processors
The Lockerstor Gen2 comes with Intel’s newest Quad-Core Celeron CPUs. The N5105 comes with Intel 10 nm technology and is up to 31% faster than Gemini Lake SoCs. The Celeron N5105 is clocked at 2.0 GHz with 2.9 GHz, enabling efficient content creation with the added flexibility of 10-Gigabit Ethernet upgrades.
Lockerstor 2 Gen2 (AS6702T) 10GbE not supported.
Four M.2 Slots – Have Your Cake and Eat it Too
The Lockerstor Gen2 series of NAS devices come with four M.2 slots for caching or storage or both. Either use all slots for one purpose or mix and match depending on your needs.
Four M.2 SSD slots bring a number of custom scenarios to your NAS when it comes to accelerating your storage.
Keeping Cool
With up to four SSDs, a considerable amount of heat can be generated. With extra ventilation, the Lockerstor Gen2 ensures that all components in your NAS receive cooling..
Tool-Free M.2 SSD Installation
Uses latches instead of screws for easier installation.
2.5 + 2.5 = Extreme Speeds
The Lockerstor Gen2 has two 2.5GbE ports which more than doubles the performance of Gigabit Ethernet devices. But that’s not all, with the recent introduction of support for SMB Multichannel, your NAS will be able to combine the speed of multiple Ethernet ports for speeds way beyond 2.5-Gigabit Ethernet.
Also Supports 10-Gigabit Ethernet
The PCIe slot in the Lockerstor Gen2 series is no longer proprietary and now accepts 10-Gigabit Ethernet cards for maximum flexibility.
PCIe 3.0 – Doubled SSD Performance
PCIe 3.0 is supported by the Lockerstor Gen2 series of NAS devices which almost double the performance of M.2 SSDs installed in your NAS, ensuring a smoother SSD experience.
USB 3.2 Gen 2 – A First for ASUSTOR
The Lockerstor Gen2 series now support USB 3.2 Gen 2 for the first time on an ASUSTOR NAS. Enjoy up to double the performance compared with USB 3.2 Gen 1 at up to 10 Gbps.
Removing your Storage Constraints
Edit videos directly on your NAS with Adobe Premiere or Final Cut Pro. Both applications, as well as the full suite of Adobe software are supported on an ASUSTOR NAS ensuring that the SSD on your laptop is no longer a constraint.
Adobe and ASUSTOR – A Winning Combination
Local Adobe Creative Cloud folders can be synchronized and backed up to and from your NAS. Take advantage of snapshots to increase protection of your data.
Creativity Knows no Bounds
Your ASUSTOR NAS can work as a hybrid cloud that enables data accessibility both locally and through public cloud providers, ensuring easy collaboration regardless of location.
The Ultimate Live Streaming Tool
ASUSTOR Live Your own streaming and backup center for YouTube and Twitch.
Comprehensive Backup and Virtualization Solution
MyArchive cold storage backups
Snapshot Center, Cloud Backup Center, DataSync Center
Complete iSCSI/IP-SAN and NFS support
VMware, Citrix and Hyper-V ready
Supports Virtualization and Docker apps
More Efficient than Ever Before
Easily Transcode 10-bit 4K H.265 media with hardware decoding with unbelievably smooth video playback in LooksGood for the ultimate in 4K enjoyment.
Snapshot Center
Snapshot Center is a new feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost.
MyArchive now supports Btrfs and snapshots. Btrfs for MyArchive supports snapshots and version history to help protect against accidental deletions or modifications.
DataSync Center
DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.
Cloud Backup Center
Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage , Alibaba Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.
