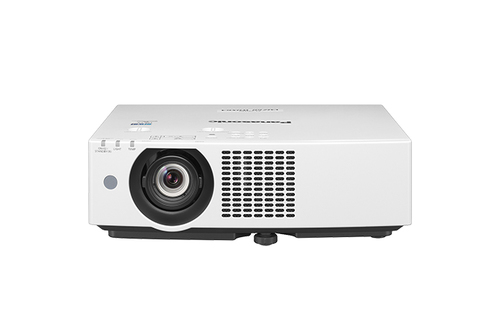

מקרן Panasonic PT-VMZ60 Laser WUXGA

אזל במלאי – צפי לזמינות בסוף אפריל 2025

מקרן לייזר Panasonic PT-VMZ60

עוצמת תאורהansi 6000

רזולוציה 1920×1200

יחס עדשה 1.09–1.77:1

טכנולוגיהLASER :
LCD

ניגודיות 3,000,000:1

גודל הקרנה: 0.76–7.62 m (30–300 in), 16:10 aspect ratio

1.6 x Manual zoom (Throw ratio: 1.09–1.77:1)

קישוריות: VGA, HDMI, RJ-45 , mini-jack, Pin jack, USB connector (Type A)

רמקול מובנה 10W monaural

משקל מוערך 7.2 kg

שנתיים אחריות יבואן רשמי

PT-VMZ60
אחריות: PT-VMZ60
זמן אספקה: 4 ימי עסקים , קיימת אפשרות לאיסוף עצמי
למה לקוחות קונים אצלנו:
  • זמן אספקה: עד 4 ימי עסקים
  • אחריות: PT-VMZ60
  • אפשרות לעד 36 תשלומים (ועד 4 תשלומים ללא ריבית)
  • משלוח עם שליח עד לבית הלקוח, קניה מאובטחת ושירות לקוחות מעולה
PT-VMZ60 חודשי אחריות
משלוח חינם משלוח חינם
קניה בטוחה
שאל אותנו על מוצר זה
מומלץ לקנות יחד

מידע נוסף

PT-VMZ60 Series

PRODUCT DETAILS

6,000 lm, WUXGA, portable LCD laser projector designed for education and corporate environments. This projector supports 4K and 30p signal input, making this projector a future-proofed solution to projecting the latest image quality and content.

KEY FEATURES

Laser LCD, 6,000 lumens, WUXGA

Long lasting laser light source provides consistent brightness and 20,000 hours maintenance-free operation

A 1.09:1 throw-ratio and a wide horizontal and vertical lens-shift allow to create large images even in small spaces

Support 4K and 30p signal input, making the range a futureproofed solution to projecting the latest image quality and content.

Optional Wireless projection capability





פרטים טכניים

פרטי המוצר
  • PRODUCT SPECIFICATIONS
  • Specification Description
  • Resolution 1920 x 1200 pixels
  • Technology Laser LCD
  • Light output*1 6,000 lumens
  • LCD panel | Panel size (mm) 16 mm diagonal (16:10 aspect ratio)
  • LCD panel | Panel size (inch) 0.64 inch diagonal (16:10 aspect ratio)
  • LCD panel | Display method Transparent LCD panel (x 3, R/G/B)
  • LCD panel | Drive method Active matrix
  • LCD panel | Pixels 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels
  • LENS 1.6 x Manual zoom (throw ratio 1.09-1.77 :1), F = 1.60-2.12, f = 15.30-24.64 mm
  • Light source Laser diode
  • Screen size (diagonal) (mm) 0.76 - 7.62 m, 16:10 aspect ratio
  • Screen size (diagonal) (inch) 30-300 in, 16:10 aspect ratio
  • Center-to-corner uniformity*1 85 %
  • Contrast*1 3,000,000:1 (all white/all black) (Input signals:PC,LIGHT POWER:NORMAL,PICTURE MODE:DYNAMIC,DAYLIGHT WIEW:OFF,DYNAMIC CONTRAST:1,AUTO POWER SAVE:OFF)
  • Optical axis shift | Vertical (from center of screen) 0 % - +44 % (Manual)
  • Optical axis shift | Horizontal (from center of screen) - 20% - +20% (Manual)
  • Keystone correction range*2 Vertical: ±25°, Horizontal: ±35°
  • Installation Horizontal/Vertical, free 360-degree installation
  • Terminals | HDMI 1/2 IN HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p signal input)
  • Terminals | COMPUTER 1 IN D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR)
  • Terminals | COMPUTER 2 IN / MONITOR OUT D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) (input/output switching)
  • Terminals | VIDEO IN Pin jack x 1
  • Terminals | AUDIO 1/2 IN M3 stereo mini-jack x 2
  • Terminals | AUDIO 3 IN Pin jack (L/R) x 1
  • Terminals | VARIABLE AUDIO OUT M3 stereo mini-jack x 1
  • Terminals | SERIAL IN D-sub 9-pin x 1 for computer control (RS-232C compliant)
  • Terminals | LAN RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ (Class 2)
  • Terminals | DIGITAL LINK/LAN RJ-45 x 1 for network and DIGITAL LINK connection, HDBase-T™ compliant, 100Base-TX, compatible with PJLink™ (Class 2), HDCP, Deep Color, 4K/30p signal input
  • Terminals | USB CONNECTOR USB connector (Type A) x 1 for Memory Viewer function, power supply (DC5V, maximum 2A*3), optional wireless module AJ-WM50
  • Power supply AC 100-240 V AC, 50/60 Hz
  • Power consumption TBD
  • Built-in Speaker 10 W (monaural)
  • Operating noise*1 NORMAL: 37dB, QUIET: 27dB
  • Cabinet materials Molded plastic
  • Filter Included
  • Filter cleaning cycle: 20,000 hours (0.08 mg/m3 of particulate matter), 10,000 hours (0.15 mg/m3 of particulate matter)
  • Dimensions (W x H x D) (mm) 399 x 115 x 348 mm (Not including protruding parts)399 x 133 x 348 mm (With feet at shortest position)
  • Dimensions (W x H x D) (inch) 15 23/32 x 4 17/32 x 13 11/16 inch (Not including protruding parts)15 23/32 x 5 1/4 x 13 11/16 inch (With feet at shortest position)
  • Weight (kg)*4 Less than 7.2 kg
  • Weight (lbs.)*4 Less than 15.87 lbs.
  • Operating environment (℃/M) Operating temperature: 0 °C- 45 °C, operating humidity: 20 %-80 % (no condensation)
  • Operating environment (°F/Feet) Operating temperature: 32 °F -113 °F, operating humidity: 20 %-80 % (no condensation)
  • Applicable software/application Logo Transfer Software, Multi Monitoring & Control Software, Presenter Light for Windows®, Wireless Projector Apps for iOS/Android™
  • Note *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped.
  • *2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMALMode, Dynamic Contrast [2], under conditions with 30 °C (86 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output declines to 50 % varies depending on environment.
  • *3 On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready.
  • *4 Average value. May differ depending on the actual unit.
  • Light output 6 000 lumens
