Label Printers CL-S703III
Large Volume, High-Speed Printing at up to 305mm/second.
The color LCD touchscreen and GUI interface provide intuitive and easy operation of the printer.
Our CL-S703III is engineered to provide an unparalleled user experience whilst printing outstanding labels in high resolution. With the same great Citizen print performance and reliability, the CL-S703III is set to be the preferred printer of manufacturing, warehousing and logistics businesses who require a high resolution label printer. Featuring Cross Emulation, the CL-S703III can flawlessly and automatically switch between Zebra® and Datamax® emulations – making integration fast and easy. Complete with 300dpi printhead, colour LCD touchscreen, ARCP technology, set up wizard, print previews and shortcuts – printing scannable and long lasting labels is now even simpler.
300dpi resolution printhead
Colour LCD screen
Print wirelessly with Standalone Forms
Enhanced user experience with set up wizard
USB and LAN interfaces as standard
Optional interfaces available: Wireless LAN, Serial and Parallel
Cross Emulation, autoswitch between Zebra® and Datamax® emulations
Paper exit: Front exit – prevents damage from moisture or foreign objects
Paper width: Variable paper width – 1 inch (25.4 mm) – 4.6 inches (118.1 mm)
Paper load: Front access for all operations including media and ribbon changing
Printing Speed:
Ultra fast print out – up to 250mm per second (10 inches per second)
Media support: Very large media capacity – holds rolls up to 8 inches (200 mm)
Ribbon options: Wide range of ribbon options – Uses up to 450 metres inside and outside wound ribbons
Paper thickness: Paper thickness up to 0.250mm
Display: Colour LCD panel with touch control, plus two buttons

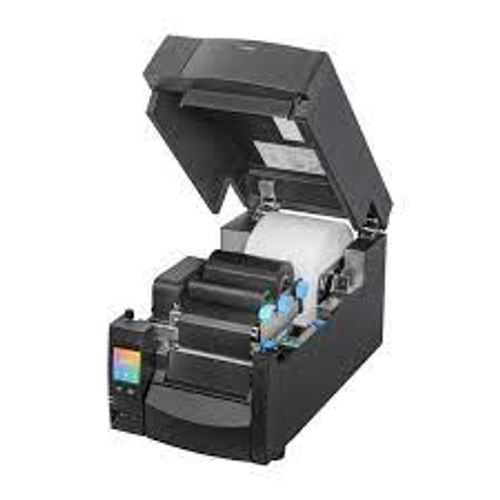

Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
No more unreadable labels – the ARCP™ ribbon control technology assures clear prints.
Power switch located in recess at front of printer
Energy:
Built in power supply
Media sensor:
Black mark sensor
Adjustable media sensor
Label gap sensor
Tear bar:
Standard tear-bar for perforated tags
Front mounted host USB connection for peripherals and memory sticks
High-Speed Printing
Capable of high-speed printing at MAX 305mm/sec.＊1
32bit RISC CPU provide high speed and high quality print.
Compare to CL-S700II, Reduce printing time by 17%(CL-S700Ⅲ)～20%(CL-S703Ⅲ)
＊1: Fast print mode:CL-S700Ⅲ, Max254mm/sec. for CL-S703Ⅲ
Great specification for industrial printer
Large Media and Print capacity: Max roll diameter 203mm, Ribbon length 450m.
LAN, USB and USB Host are standard. Wireless LAN is available as an option.
User memory: ROM 24MB, Increase storage capacity for ROM
High quality scalable Font by command. Support Japanese, Chinese and Korea (2 bytes characters) and English.
ARCP: Active Ribbon Control & Positioning
Mechanism adjusts ribbon tension constantly
Label : Pulling ⇒ Constant adjustment
Label : Forwarding ⇒ Constant adjustment
