Scale with 8 chassis VSF stacking.
Convenient built-in 1GbE or 10GbE uplinks and up to 740W PoE+.
High-Performance Access Layer Switches
The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
Stacking with Virtual Switching Framework (VSF) and convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.

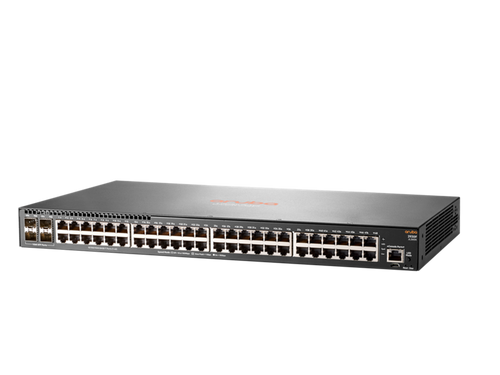

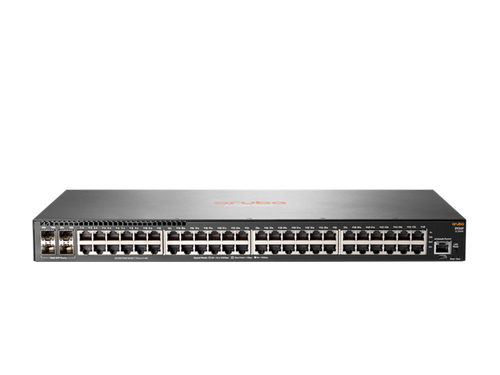

Aruba 2930F 48G 4SFP Switch
DifferentiatorPopular Aruba 52-port Gig access switch.
This model has 48x 10/100/1000 ports and 4x 1000/100 SFP transceiver slots for uplink connectivity.
Power consumption46.6 W (maximum)
Heat dissipation100 BTU/hr (105.5 kJ/hr)
Input voltage100 – 127 / 200 – 240 VAC, rated
Ports(48) RJ-45 autosensing 10/100/1000 ports
(4) SFP
Latency1000 Mb Latency: < 3.8 µs
Switching capacity104 Gbps
Throughputup to 77.4 Mpps
Memory and processorDual Core ARM Cortex A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress
4 GB eMMC
PoE capability740 W PoE+ maximum, depending on model
Management featuresAruba AirWave
Central Network Management
IMC – Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)
WarrantyLimited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.
Weight3.1 kg (6.83 lb)
Dimensions4.39 × 44.25 × 24.63 cm (1.73 x 17.42 × 9.7 in)
