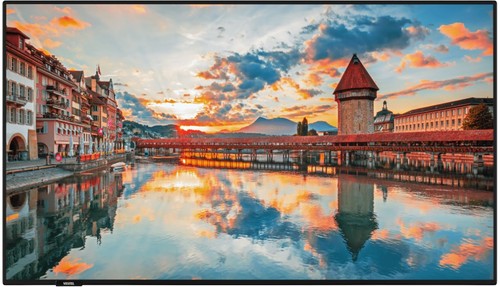

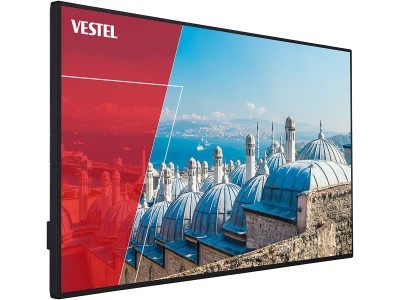

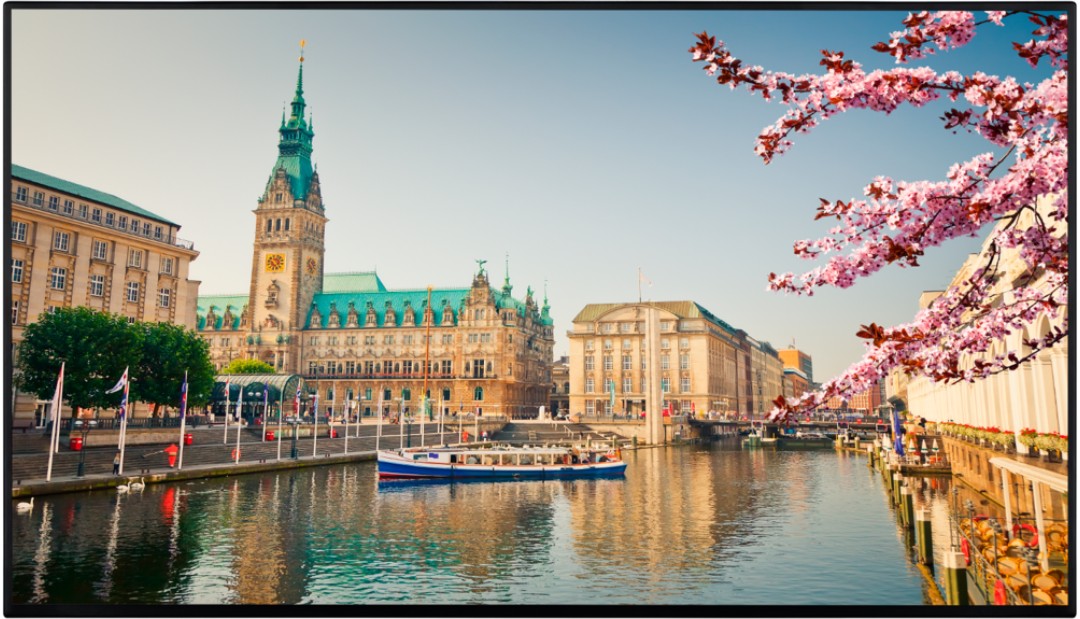

PN50B-4H
Resolution: 3840×2160 (UHD)
Brightness: 500 cd/m²
Operation: 24/7
OPS/SDM/NUC Module Support
Embedded IR/IR Extender Options
30° Tilting Installation
Application Areas: Retail, QSR, Corporate, Control Rooms, Transportation
Features
Daisy Chain
The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.
Usb Security
This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.
Usb Auto-Play
You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.
Subtle Design
This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, detachable power plug and IR extender.
SoC Content Management
With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.
Signal Failover
Our displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.
Scheduler
The built in scheduler is one of the many important included features. The scheduler allows you to plan daily routines of when the display is powered on or off, along with selection of different sources or USB playlists.
Pixel Shifting
The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.
Optional OPS Support
All our products in this series have an optional OPS (Open Pluggable Standard) slot. OPS will empower your screens with enhanced processing power and ability to choose Windows or Android as your operating system to fit your specific application.
Open Platform Support
Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.
External Device Connections
You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.
Display Control
Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.
Panel
Screen Size50"
Backlight TypeSlim DLED
Brightness (typical)500 cd/m²
Native Resolution3840 × 2160 (16:9) – UHD
Contrast Ratio (typical)5000:1(typ.)
Dynamic Contrast Ratio50000:1
Panel Life Time ( Min. )50000 Hrs
Response Time (typical)9.5 ms
Active Area (H x V)1095.84 × 616.41
Viewing Angle178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Color Value1.07B
Screen Treatment3H
Haze Level3%
Refresh Rate60Hz
OrientationLandscape / Portrait
Operation Hours24 / 7
Area of UsageIndoor
Built-in System
Mainboard Model17MB135VS
Monitor Connectivity
RGB OutputN/A
Video Input4xHDMI2.0, 2xUSB2.0, USB2.0(Internal)
Video OutputHDMI2.0,
Audio InputLine In L/R
Audio OutputHeadphone, Optic SPDIF
External ControlRS232, Ethernet(RJ45), Service(RJ12)
External SensorRJ12
Mechanical
Product Dimensions (WxDxH)1121 × 83 × 646 mm with OPS/SDM 1121 × 63 × 646 mm without OPS/SDM
Package Dimensions (WxDxH)1215 × 165 × 775
Product Weight12.8 kg
Package Weight16.8 kg
Vesa Mounting200 mm(W) x 200 mm(H) M6
Bezel Width9/9/9/13 mm
Environmental Conditions
Operating Temperature0-40°C
Operating Humidity10-90%
Power
Power Supply110 VAC – 240 VAC – 50/60 Hz
Power Consumption
Typical121 W
Maximum160 W
Deep Standby≤0.5 W
Features
Main FeaturesOpen Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD Rotation, NoSignalPowerOff, Screen Saver, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock
Mechanical FeaturesJoystick, Rocker Switch, Detachable Power Cable, Dettachable Logo, Internal Usb Cover, 30-degrees Tilting Installation
Optional FeaturesSDM or OPS compatibility, Embedded IR, IR extender option
Speaker2×10 W
Accessory
StandardQSG, IB, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable
Certification
