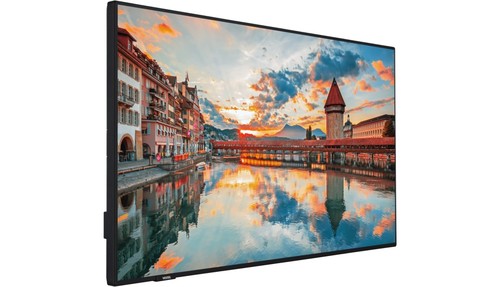

מסך שילוט מקצועי Vestel PN43D-4H 43 24/7

מסך שילוט מקצועי בגודל 43" לעבודה 24/7 מבוסס מערכת הפעלה Android 9

בהירות גבוהה 500 cd/m²

יכולת צפיה ב Landscape ו – Portrait

רזולוציה 3840 * 2160 (16:9) – UHD

רמקולים מובנים 2×8W

תמיכה בשיתוף מסך

תקשורת: WiFi 5 (802.11 a/b/g/n/ac), IEEE 802.1X Authentication, BT 5.1,

4xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0, 1xUSB-A 2.0 (Internal), 1x Micro USB

1xHDMI2.0, RS232 (3.5mm jack green), Fast Ethernet (RJ45), Service (RJ12)

בין אם בסביבה קמעונאית, בסביבה ארגונית או במרחב ציבורי, תצוגה זו מבטיחה שהתוכן שלך מועבר בבהירות ובאמינות מדהימה.

אחריות שלוש שנים באתר הלקוח

PN43D-4H
מחיר: 2,729 ₪
משלוח חינם
משלוח עם שליח עד לבית הלקוח: 0 ₪
אחריות: שלוש שנים באתר הלקוח
זמן אספקה: 5 ימי עסקים , קיימת אפשרות לאיסוף עצמי
למה לקוחות קונים אצלנו:
  • זמן אספקה: עד 5 ימי עסקים
  • אחריות: שלוש שנים באתר הלקוח
  • אפשרות לעד 36 תשלומים (ועד 4 תשלומים ללא ריבית)
  • משלוח עם שליח עד לבית הלקוח, קניה מאובטחת ושירות לקוחות מעולה
שלוש שנים באתר הלקוח חודשי אחריות
משלוח חינם משלוח חינם
קניה בטוחה

מידע נוסף

PN43D-4H

VAP400 (Vestel Android Platform 400)

2 GB DDR4 / 16 GB eMMC

Resolution: 3840×2160 (UHD)

Brightness: 500 cd/m²

Operation: 24/7

Embedded IR/IR Extender Options

30° Tilting Installation

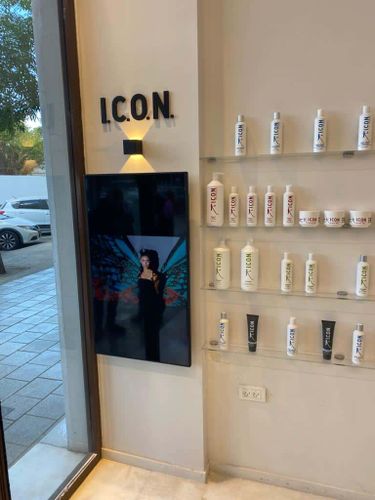

Application Areas: Retail, QSR, Corporate, Control Rooms, Transportation



Features

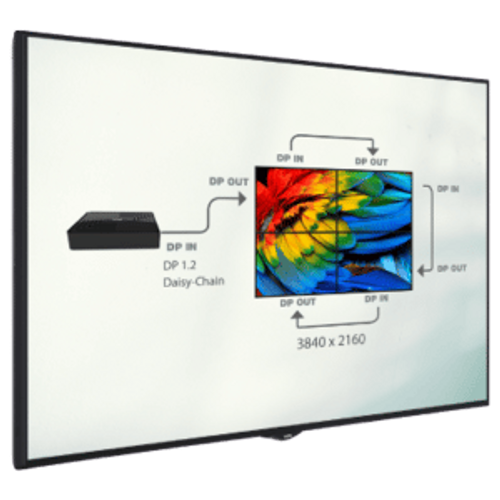

Daisy Chain

The display can mirror the content (to another display) into its display port out coming from its display port in. This set up creates a daisy chain like structure allowing for monitors to be set up as Video Wall mode.



Usb Security

This series lets your USB and your content to be secured within the back cover of the display. The cover is protected with a screw not allowing any outside intervention.



Usb Auto-Play

You will be able to show photo and video content automatically with USB Auto-play feature. SoC software gives you a choice to turn on USB auto-play function making it easy for end-users to show any media on the screen and not worry about anything else.



Subtle Design

This series’ displays exhibit ultra narrow bezel design eliminating the visual superfluities, directing audience focus on your advertised content. This series is found to be desirable for digital signage specific design: internal usb cover, detachable power plug and IR extender.



SoC Content Management

With quad core SoC (System on Chip), this Series displays are the digital signage monitors for both offline designed content and cloud-based managed content. This helps your digital content to be displayed in the displays by content management systems.



Signal Failover

Our displays have a protection for “No Signal”. If the source is disconnected, the display will either show your customized banner or search for any other signal from video sources. Since blank screen is the worst case scenario for advertisement, failover is one of the critical feature in our signage displays.



Scheduler

The built in scheduler is one of the many important included features. The scheduler allows you to plan daily routines of when the display is powered on or off, along with selection of different sources or USB playlists.



Pixel Shifting

The Pixel Shifting feature can be activated in order to reduce the potential risk of image sticking when static content is displayed over long periods of time. The feature periodically shifts the image on the display, without causing any interference of the visual experience.



Open Platform Support

Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any HTML5-based to be installed and used on our displays.



External Device Connections

You may want to connect your teleconference system, screen sharing system, set-top box or external PCs via HDMI port. For this purposes, our monitors help you to maximize user experience with HDMI CEC (Consumer Electronics Control) and HDMI Hotplug capabilities.



Display Control

Digital Signage Display SoC enables the users to control our displays using RS232 commands in a Local Area Network. Together with the full RS232 command list you can change/set volume, turn on/off the monitor, set a schedule for content display, set a webpage link to be displayed and give a wide range of commands in real-time.



פרטים טכניים

פרטי המוצר
  • Panel
  • Screen Size
  • 43"
  • Panel Technology
  • IPS
  • Backlight Type
  • Slim DLED
  • Brightness (typical)
  • 500 cd/m²
  • Native Resolution
  • 3840 x 2160 (16:9) - UHD
  • Contrast Ratio (typical)
  • 1200:1 (typ.)
  • Dynamic Contrast Ratio
  • 50000:1
  • Panel Life Time ( Min. )
  • 50000 Hrs
  • Response Time (typical)
  • 8 ms
  • Active Area (H x V)
  • 941.1 (H) × 529.4 (V) mm
  • Viewing Angle
  • 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
  • Color Value
  • 1.07G (8bits + FRC)
  • Color Gamut
  • 72% NTSC
  • Haze Level
  • 1%
  • Refresh Rate
  • 60 Hz
  • Orientation
  • Landscape / Portrait
  • Operation Hours
  • 24/7
  • Area of Usage
  • Indoor
  • Built-in System
  • Mainboard Model
  • 17MB400VS
  • Operating System
  • Custom OS (built on Android AOSP)
  • Memory
  • 2 GB DDR4
  • Storage
  • 16 GB eMMC
  • Additional Storage
  • Micro SD (up to 1TB)
  • CPU
  • Quad-Core ARM Cortex-A55
  • GPU
  • ARM Mali-G31 MP2
  • Wired
  • 10/100 Mbps Ethernet, IEEE 802.1X Authentication
  • WiFi
  • WiFi 5 (802.11 a/b/g/n/ac), IEEE 802.1X Authentication
  • Bluetooth
  • BT 5.1
  • HTML5 Browser
  • Vewd
  • Wireless Display
  • Miracast

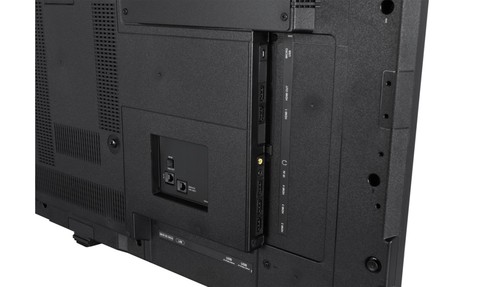

  • Monitor Connectivity
  • Video Input
  • 4xHDMI2.0, 1xUSB-A 3.0, 1xUSB-A 2.0, 1xUSB-A 2.0 (Internal), 1x Micro USB
  • Video Output
  • 1xHDMI2.0
  • Audio Output
  • Headphone, Optic SPDIF
  • External Control
  • RS232 (3.5mm jack green), Fast Ethernet (RJ45), Service (RJ12)
  • External Sensor
  • RJ12
  • Mechanical
  • Product Dimensions (WxDxH)
  • 963 x 63 x 555 mm
  • Package Dimensions (WxDxH)
  • 1050 x 178 x 718 mm
  • Product Weight
  • 10.4 kg
  • Package Weight
  • 13.5 kg
  • Vesa Mounting
  • 200 (W) x 200 (H) mm M6
  • Bezel Width
  • B: 9 mm, T/L/R: 6 mm
  • Environmental Conditions
  • Operating Temperature
  • 0-40°C
  • Operating Humidity
  • 10-90%
  • Power
  • Power Supply
  • 110 VAC - 240 VAC - 50/60 Hz
  • Power Consumption
  • Typical
  • 127 W
  • Maximum
  • 160 W
  • Deep Standby
  • ≤0.5 W
  • Features
  • Main Features
  • HTML5 CMS Launcher, Android CMS Launcher, Open Content Management Support, Scheduler, USB-Autoplay, Auto-Launch, HDMI-CEC, HDMI-Wakeup, Auto-switch on Failover, Panel Lock, OSD and UI Rotation, Video Rotation, NoSignalPowerOff, Pixel shift, Scheduler, Videowall support, Remote control via LAN, Real Time Clock, Crestron Connected, SNMP
  • Mechanical Features
  • Joystick, Rocker Switch, Detachable Power Cable, Detachable Logo, Internal USB Cover
  • Speaker
  • 2x8 W
  • Accessory
  • Standard
  • QSG, IB, Power cord, Remote control unit, RC battery, Mounting kit, IR extender cable
  • Certification
  • Safety
  • Yes
  • EMC
  • Yes
  • CE
  • Yes
