UHD 4K display with resolution of 3840 × 2160.
Anti-glare and anti-blocking design to ensure smooth interaction.
Dual systems of Android and Windows（Optional with OPS）saving cost and easy to use, video conference software are recommonded to run under Windows system.
Quick response, at most 50-points touch control and smooth writing experience.
Built-in network switch chip saves a network switch.
All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.
EDLA Certified
Product Model

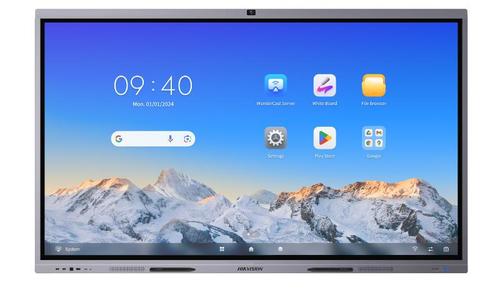

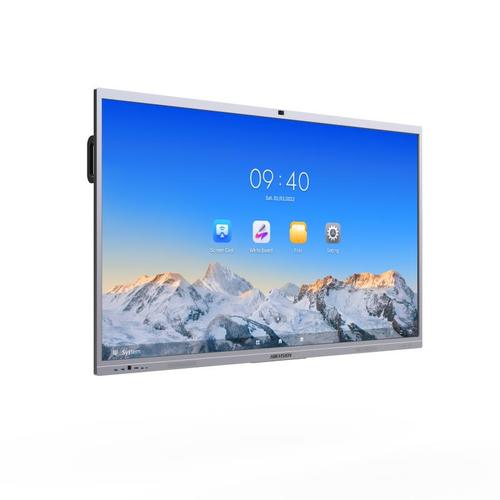

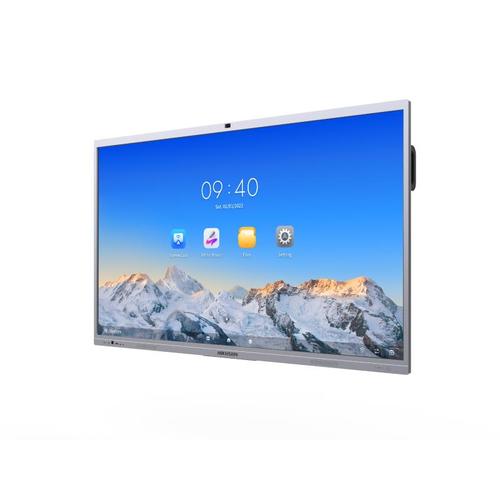

Product ModelDS-D5C86RB/B
Display
Screen Size86 inch
BacklightDLED
Pixel Pitch0.1645（H）× 0.4935（V）mm
Resolution3840 × 2160 @60 Hz
Brightness400 cd/m² （Typ.）
Color Depth10 bit
Display Color1.07G
Response Time6 ms
Panel TypeVA
Contrast Ratio
5000:1 (Static)
30,000:1 (Dynamic)
Color Gamut72% NTSC（CIE1931）（Typ.）
Refresh Rate60 Hz
Viewing Angle178°(H)/178°(V)
Aspect Ratio16:9
Surface Hardness9H
Surface Glass3.2 mm Anti-Glare Glass
Surface Haze25%Haze
Glass Bonding MethodZero Lamination
Display Area1895.04mm ╳ 1065.96mm
Working Duration7 × 16H
Transmittance88% ± 3
Lifespan50,000 hours
Touch
TypeInfrared Touch Screen
Touch Point45 point multi-touch
Touch Response Time＜ 5 ms
Minimum Touch Object≥ 2 mm
Touch Precision± 1 mm (≥ 90% touching area)
Touch Resolution32768 × 32768
Built-In System
Operation SystemAndroid 13.0
Memory8 GB
Built-In Storage128 GB
ProcessorQuad-core Cortex-A76 × 4（2.4GHz）and quad-core Cortex-A55 × 4（1.8GHz）
GPUMali-G610 MC4
HDCP Version2.3
Camera
PixelPixel 48MP for Photos & 8 MP for Video
Camera FunctionSupport intelligent switching between Android system, OPS, and PC.
Field Angle120°(diagonal), 110°(horizontal), 75°(vertical)
Distortion≤2.5%
Camera Resolution RatioUp to 4K
Microphone
SpecificationOmni-directional 8-array layout
Mic FunctionEcho reduction and smart noise-cancellation
Voice Distance12 m
Sampling Rate32 K
Mic Sampling Rate16 bit
Internal Function
LoudspeakerBuilt-in 2 ×20 W+25W loudspeaker;
BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
NFCSupport screen mirroring by Android phones
Light SensorYes
Image Processing TechnologySupport 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction and distortion correction for lens.
Audio Processing TechnologySupport dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
Interface
Video & Audio InputHDMI In （HDMI 2.0）× 3, VGA In x 1, DP In （DP 1.2）× 1, Audio In × 1
Video & Audio OutputHDMI Out （HDMI 2.0）× 1, Audio Out × 1, SPDIF Out × 1
Control InterfaceTOUCH-USB 3.0 × 3, RS232 × 1
Network Interface
LAN (1000 Mbps) × 2
WIFI AP&Station，2.4G/5G
IEEE 802.11 a/b/g/n/ac 2×2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Data Transmission InterfaceUSB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
Power
Power Supply100 to 240 VAC, 50/60 Hz
Standby Consumption≤ 0.5 W
Average Consumption< 205W
General
VESA800 mm × 600 mm （4 × M8-25 mm）
Product Dimensions1960.5 mm × 1173.7 mm × 82.5 mm
AccessoryWall mount bracket, hook, user manual, touch writing pen, packing list, 3M touch USB cable, 3M HDMI cable (2.0), 1.5m power cable (European standard), Bluetooth remote control.
Package Dimensions (W × H × D)2197 mm × 284 mm × 1376mm
Net Weight65.13 kg
Gross Weight82.6 kg
Working Environment
Working Temperature0 °C to 40 °C (32 °F to 104°F)
Working Humidity10%~90% RH
